Hyperspectral cameras: Unlocking new insights into the science behind color

As an advanced optical imaging device, hyperspectral camera has shown great application potential in many fields in recent years. It can not only obtain spatial information of objects, but also obtain rich spectral information at the same time, providing unique and valuable data for scientific research and practical applications.

What is a hyperspectral camera?

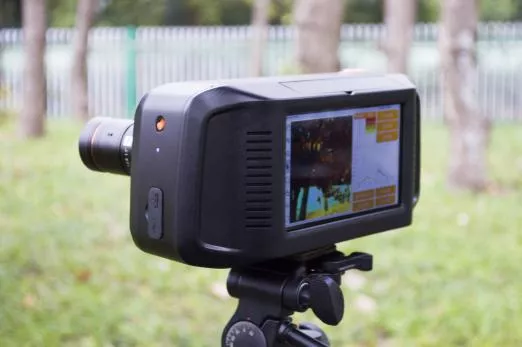

A hyperspectral camera is an imaging device that can capture the information of light reflected or emitted by a target object in multiple continuous and narrow spectral bands. Unlike the limited color range that traditional cameras or the human eye can perceive, a hyperspectral camera covers a wide spectral region from ultraviolet to infrared and can generate a data cube containing rich spectral information. These data not only record the spatial position information of the target object (two-dimensional image), but also include the spectral response characteristics of each pixel at different wavelengths (third-dimensional spectral information), thereby achieving a more comprehensive and in-depth analysis of the target object.

How a hyperspectral camera works

The work of hyperspectral camera is based on spectroscopic technology, which uses a spectrometer to decompose the incident light into monochromatic light of different wavelengths, and measures the reflection or emission intensity of the target object at each wavelength through a series of precise optical systems and detectors. These data are then integrated into a three-dimensional data cube for subsequent processing and analysis. The high-resolution spectral characteristics of the hyperspectral camera enable it to capture subtle spectral differences that traditional cameras cannot detect, thereby revealing information such as the chemical composition, physical state, and environmental conditions of the surface of the object.

Application areas of hyperspectral cameras

1. Agriculture and forestry: Hyperspectral cameras are widely used in agriculture. By analyzing the spectral data of crop leaves, fruits and other parts, the growth status, nutritional level, pest and disease situation and yield prediction of crops can be accurately evaluated. In forestry, hyperspectral cameras can be used to monitor forest cover changes, tree species identification and forest health assessment.

2. Environmental monitoring and protection: Hyperspectral cameras can identify and quantify various pollutants in the environment, such as oil pollution in water bodies, heavy metal pollution and harmful gases in the air. At the same time, it can also be used to monitor land degradation, ecological restoration and the impact of climate change on the natural environment.

3. Mineral resource exploration: Hyperspectral cameras can detect specific mineral components in surface rocks, soil and vegetation, providing important clues for the exploration of mineral resources. By analyzing the spectral features in hyperspectral images, the location of mineral deposits can be quickly located and their scale and quality can be evaluated.

4. Military and defense: In the military field, hyperspectral cameras can be used for target identification, camouflage detection and battlefield environment monitoring. Its high-resolution spectral data can help military personnel more accurately identify enemy targets, assess battlefield situations and develop corresponding tactical strategies.

5. Cultural heritage protection: Hyperspectral cameras also play an important role in cultural heritage protection. By analyzing the spectral data on the surface of cultural relics, it is possible to reveal information such as the material, production process and historical changes of the cultural relics, providing a scientific basis for the restoration, protection and display of cultural relics.

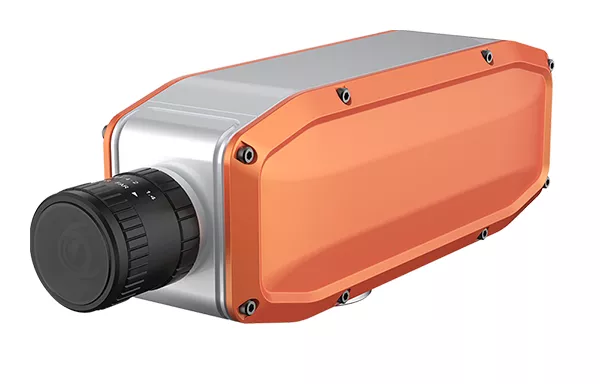

Hyperspectral cameras are becoming a shining star in modern scientific research and technological applications with their unique imaging capabilities and wide application potential. FigSpec®FS1X series hyperspectral cameras include three spectral regions: visible light (400-700nm), near infrared (400-1000nm) and short-wave near infrared (900-1700nm). They are widely used in printing, textiles and other industrial products for surface color and texture detection, component identification, material identification, machine vision, agricultural product quality and other fields. With the continuous advancement of technology and the gradual reduction of costs, hyperspectral cameras will play an important role in more fields and contribute more wisdom and strength to the sustainable development of human society.

This article is provided by Caipu. For more details, please visit Caipu's official website.
