The application of CHNSpec hyperspectral cameras in mine exploration

Mine exploration is the fundamental link in mineral resource development, directly determining the efficiency, cost, and safety of resource extraction. Traditional mine exploration relies on manual geological surveys and borehole sampling, which suffer from pain points such as low efficiency, insufficient exploration precision, high costs, high safety risks, and significant disturbance to the ecological environment. Especially in complex terrains and hidden ore point exploration, traditional methods find it difficult to play a role. Deeply cultivating the spectral field for over a decade, CHNSpec hyperspectral cameras, with their core characteristic of "combining image and spectrum" and an all-scenario adaptable product matrix, have broken the monopoly of imported equipment. They have become core technical equipment in the field of mine exploration, effectively solving many traditional exploration problems, providing reliable technical support for mine exploration, resource assessment, and extraction planning, and promoting mines to achieve scientific, green, and sustainable development.

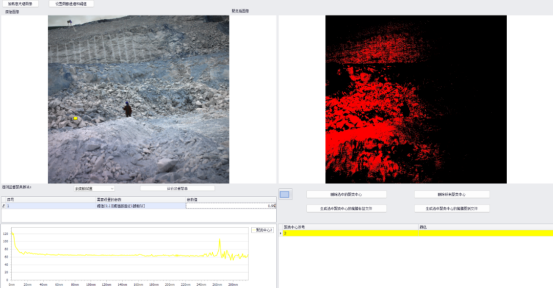

The core advantage of CHNSpec hyperspectral cameras in mine exploration lies in their powerful spectral information capture and analysis capabilities, enabling the precise capture of the unique "spectral fingerprints" of different mineral deposits. Different types of mineral deposits (such as copper, iron, malachite, azurite, etc.) present unique absorption or reflection peaks in specific spectral bands due to differences in chemical composition and crystal structure. By covering the full spectral range of 400-2500nm with a spectral resolution of up to 2.5nm (1.5nm for some models), CHNSpec hyperspectral cameras can densely capture subtle spectral feature differences of minerals. Combined with dedicated data analysis algorithms, they can accurately identify mineral types, distribution ranges, and subtle changes in ore veins, providing precise targeting for exploration work and significantly improving the focus and success rate of exploration.

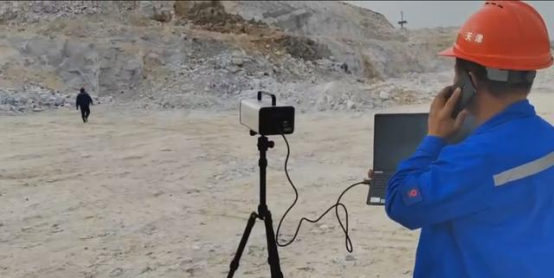

Targeting different exploration scenarios, CHNSpec hyperspectral cameras have launched exclusive adapted models, building a complete mine exploration solution. In field single-point precise detection scenarios, the CHNSpec FSIQ series portable hyperspectral camera is recommended. This series covers a spectral range of 400-1700nm with a spectral resolution of 2.5nm and 1200 spectral channels, clearly identifying the occurrence state of target minerals and associated minerals. It adopts an internal push-broom design, requiring no external complex push-broom mechanism, and can quickly complete data acquisition upon startup. Paired with a 5-inch touchscreen, it offers convenient operation. Its lightweight design (approx. 2.8kg) and built-in battery adapt to the mobile detection needs of complex field terrains. A single device can complete the precise detection of rock outcrops and soil profiles, significantly reducing field work intensity.

For large-scale area census scenarios such as mountainous and mining areas, the CHNSpec FS-6B airborne full-spectrum hyperspectral camera is recommended. This model is specifically designed for airborne platforms, integrating VISNIR and SWIR dual modules. The visible-near-infrared band (400-1000nm) is equipped with 1920 spatial channels and 1200 spectral channels, while the short-wave infrared band (900-2500nm) has 250 spectral channels, comprehensively capturing spectral information of different minerals. Its ultra-light body design supports single-person operation, with built-in 8G memory and a 512G solid-state drive to store large amounts of exploration data. Adapted for low-altitude UAV scanning, it can quickly cover exploration areas of dozens of square kilometers, precisely delineating the distribution of characteristic minerals like kaolinite and alunite in hydrothermal alteration zones, providing precise targeting for drilling operations, reducing "blind drilling" risks, and significantly improving the efficiency of large-scale censuses.

For hidden ore point detection in complex terrains where personnel have difficulty reaching, the CHNSpec FS64-UC UAV hyperspectral LiDAR measurement system demonstrates unique advantages. This system integrates hyperspectral imaging and LiDAR functions, with a spectral range covering 400-1700nm, a resolution of 13nm, 1280 spatial channels, and a measurement accuracy of 5cm, achieving 3D remote sensing. It can adapt to mainstream UAV platforms, gathering geological information from all directions while reducing ecological disturbance, identifying spectral features of hidden ore points while obtaining 3D data of geological structures, meeting the "green exploration" needs of ecologically sensitive areas. Furthermore, the system supports multi-threaded synchronous measurement and can quickly process exploration data, providing reliable support for the identification and analysis of hidden ore points.

The application of CHNSpec hyperspectral cameras in mine exploration not only significantly improves exploration efficiency and accuracy but also effectively reduces exploration costs and safety risks. Compared with traditional exploration methods, it requires no extensive borehole sampling and can obtain large amounts of mining area data in a short time, simultaneously monitoring multiple areas to help mines better plan extraction work, improve resource utilization, and reduce resource waste. Meanwhile, its non-contact exploration method significantly reduces the risk for staff entering dangerous areas and has minimal disturbance to the ecological environment, aligning with the green mine construction concept. Currently, CHNSpec hyperspectral cameras have been widely applied in various mine exploration projects. With core advantages of high precision, high adaptability, and high cost-performance, they have become a reliable guarantee for scientific decision-making and resource management in mines, assisting in enhancing the economic and ecological benefits of mine exploration.
