What is the Principle of Measuring Sugar Content with Hyperspectral Imaging? The Science Behind "Knowing Sweetness Without Peeling" in Fruit Sorting

In the past, fruit classification relied on two main approaches: experienced workers judging fruit by touch and color, which inevitably introduced subjective bias, or sampling and cutting open fruits for laboratory refractometer testing, which directly destroyed the fruit and caused high loss costs in mass assembly line operations. Is there a way to assess fruit flesh sweetness at a glance without peeling or damaging the fruit? Today, let's break down hyperspectral imaging technology and talk about this practical technology for inspecting internal taste in fruit sorting.

I.  Hyperspectral Imaging Can Read Fruit Flesh Molecules

A hyperspectral camera can split light into hundreds of continuous narrow bands, generating an exclusive spectral curve for every single pixel in the image. This is equivalent to performing an optical "molecular scan" on the fruit, obtaining two key layers of information simultaneously:

1.Image spatial information: Identifying surface scratches, deformities, black spots, and other appearance defects;

2.Spectral chemical information: Capturing molecular signals of sugar, moisture, and organic acids inside the flesh to dig deep into internal quality.

Among these, the near-infrared band (900–1700nm) is the core interval for sugar measurement. Sugar molecules carry chemical bonds like O-H and C-H, which display fixed absorption and reflection characteristics when exposed to corresponding wavelengths of light—much like a unique spectral fingerprint for each substance. The higher the sugar content, the more obvious the spectral absorption signal variation in the corresponding band. Once the equipment captures these differences, it converts them using algorithm models to output precise Brix (sugar content) values without scratching or cutting open the fruit throughout the process.

II. A Simple Breakdown: The Process of "Measuring Sweetness Without Peeling"

Many people wonder how the machine accurately distinguishes high and low sugar levels right through the fruit skin. It can be understood in three simple steps:

1.Light penetration sampling: The device emits a gentle near-infrared light source. The light penetrates the thin fruit skin and reacts with glucose, fructose, and moisture inside the flesh. Part of the light is absorbed by the sugar, while another part is reflected back to the hyperspectral detector. Fruits with different sweetness levels exhibit stable differences in absorbed and reflected light intensity.

2.Exclusive spectral feature extraction: The camera collects reflection data across hundreds of bands, selects the characteristic absorption peaks corresponding to sugar, and filters out interference signals from the fruit skin, seeds, and fiber to isolate effective data related solely to sugar content.

3.Algorithm model conversion and grading: In the early stage, a vast database is established using fruits of varying sweetness to train machine learning models on the relationship between spectral curves and measured sugar values. During real-time assembly line testing, the system matches spectral data instantaneously, outputs sugar content values rapidly, and links with sorting equipment for automatic grading—separating high-sugar, medium-sugar, and low-sugar fruits into different streams.

This logic is not limited to measuring sugar; flesh acidity, moisture, internal compression damage, and internal browning/hollowness can all be identified simultaneously based on the spectral differences of different substances, completing internal and external quality screening at once on a single production line.

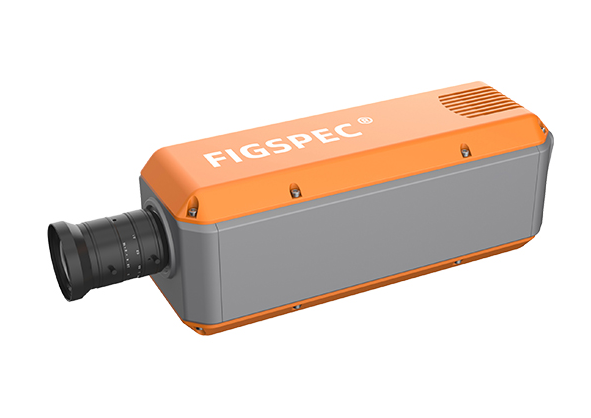

III. Product Recommendation: CHNSpec FS-19 Series Industrial On-line Short-Wave Infrared Hyperspectral Camera

After understanding the underlying logic of non-destructive sugar measurement and internal damage screening, many processing plants wonder what kind of equipment can stably adapt to high-speed fruit and vegetable sorting production lines. Here, we introduce CHNSpec's self-developed FS-19 series industrial on-line high-speed short-wave infrared hyperspectral camera.

Specially built for industrial dynamic sorting scenarios, this equipment perfectly matches the needs of fruit/vegetable sugar content and internal defect detection:

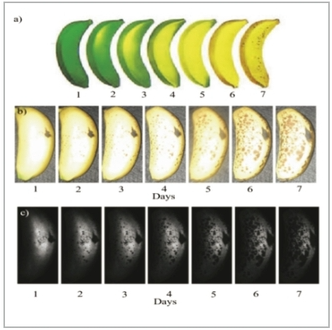

1.Precise wavelength band matching sugar measurement needs: The entire machine is fixed to the 900–1700nm short-wave infrared range, which is precisely the core band where sugar and organic acid molecules in fruits and vegetables generate characteristic spectra. Paired with a spectral resolution of around 8nm, it can capture subtle spectral fluctuations in fruit flesh sugar content without missing minute sweetness variations, while distinguishing tissue differences caused by banana pressure bruises and internal browning in fruits.

2.High-speed imaging adapted for assembly lines: Multiple models within the series achieve imaging speeds of up to 7800fps. Even when materials are conveyed at high speeds on the production line, it can completely collect spectral data fruit by fruit without missed inspections or blurred data, suiting the continuous production rhythm of large fruit and vegetable processing plants.

3.Compact body with low modification threshold: The overall structure is compact, and the aluminum alloy body is sturdy and durable, operating stably in dusty and damp factory environments at room temperature. The lens supports multiple specification options (6/8/12/25/35mm). Whether constructing a new sorting line or retrofitting existing traditional color sorting equipment, installation and debugging can be completed flexibly.

4.Complete supporting software reduces operational difficulty: It comes with matching hyperspectral image processing software featuring built-in templates for fruit/vegetable sugar content and internal damage analysis, allowing enterprises to expand local fruit databases independently. Additionally, it opens up SDKs to support secondary development, connecting directly with existing sorting, rejection, and conveyance control systems to complete the entire process of "scanning–analysis–grading/rejection" under one roof.

Beyond fruit and vegetable sorting, the FS-19 series can also be expanded for plastic material classification and ore material screening, covering the inspection needs of multiple production lines with a single machine. For small and medium-sized fruit enterprises, there is no need to rely on imported hyperspectral equipment, as localized technical support ensures faster response times for debugging and model optimization needs.
