Hyperspectral camera FS1X series

(line scanning)

FigSpec® FS1X series hyperspectral cameras cover five spectral regions: visible light (400-700nm), visible near-infrared (400-1000nm), visible near-infrared short-wave infrared (400-1700nm), short-wave infrared (900-1700nm), and short-wave infrared (1400-2500nm). They are widely used in surface color and texture detection of various industrial products such as printing and textiles (the single-pixel repeatability of color measurement can reach dE*ab<0.1), component recognition, material identification, machine vision, agricultural product quality and other fields.

Product features
Visible light: · Spectral range: 400-700nm, wavelength resolution better than 2.5nm, up to 600 spectral channels · Acquisition speed: up to 41HZ for the whole spectrum, up to 390Hz after band selection (supports multi-region band selection) · Widely used in surface color and texture detection of various industrial products such as printing and textiles, color measurement single pixel repeatability can reach dE*ab<0.1 Visible light near infrared (400-1000nm): · Wavelength resolution better than 2.5nm, up to 1200 spectral channels · Spatial pixel number can reach 1920 Visible light near infrared short wave infrared (400-1700nm): · Wavelength resolution better than 13nm, up to 680 spectral channels · Spatial pixel number can reach 1280 Short wave infrared (900-1700nm): · Wavelength resolution better than 6nm, up to 1024 spectral channels · The number of spatial pixels can reach 1280 Short-wave infrared (1400-2500nm): · Wavelength resolution better than 12nm, up to 210 spectral channels · The number of spatial pixels can reach 320
Technical parameters

Model

FS-10

FS-12

FS-12-HWFS-13FS-14

FS-15

FS-17

FS-18

FS-1A

Spectral method

Transmission Grating

Transmission GratingReflection GratingTransmission GratingTransmission GratingTransmission GratingTransmission GratingTransmission GratingTransmission Grating

Spectral range

400-700nm

400-1000nm

400-1000nm400-1000nm400-1700nm900-1700nm900-1700nm900-1700nm1400-2500nm

Spectral bands

600

1200

670
12006805121024512210

Spectral resolution (FWHM)

2.5nm

2.5nm5nm2.5nm13nm6nm6nm
6nm12nm

Slit width

25um

25um25um25um25um25um25um25um25um

Transmission efficiency

50%

60%

60%60%60%60%60%60%60%

Stray light

0.5%

0.5%0.5%0.5%1%0.5%0.5%0.5%0.5%

Spatial Pixels

1920

19201920192012806401280640320

Pixel size

5.86um

5.86um5.86um5.86um5um*5um15um5um15um20um*20um

Imaging speed

Full-band 41fps,

390fps after ROI


Full-band 41fps,

390fps after ROI


128fps

Full-band 128fps,

3300fps after ROI


100fps

579fps

8bit/1024 bands 132fps, 12bit/1024 bands 70fps, 8bit/512 bands 253fps, up to 1800fps after ROI

724fps

509fps

Detector

CMOS

CMOSCMOSCMOSInGaAsInGaAsInGaAsInGaAsInGaAs

SNR(Peak)

500/1

600/1600/1600/1600/1600/1600/1600/1300/1

Camera Output

USB3.0

USB3.0USB3.0USB3.0USB3.0USB3.0USB3.0CameralinkUSB3.1

Camera interface

C-Mount

C-MountC-MountC-MountC-MountC-MountC-MountC-MountC-Mount

Accessories

USB 3.0 cable

USB 3.0 cableUSB 3.0 cableUSB 3.0 cableLens, USB cable, power supplyUSB 3.0 cableLens, USB cable, power supplyLens, data cable, power supply, data acquisition cardLens, USB cable, power supply
ROISingle areaSingle areaMultiple regionsMultiple regionsMultiple regionsSingle areaMultiple regionsSingle area/
Size

L * W * H:

22.8cmx7

cmx8.6cm

L * W * H:

22.8cmx7

cmx8.6cm

L * W * H:

85mm*74mm*45mm

L * W * H:

22.8cmx7

cmx8.6cm

L * W * H:

220mm*11

0mm*95mm


L * W * H:

345mm*122

mm*136mm

L * W * H:

16.6cmx7.5

cmx7.4cm

/

L * W * H:

472mm*146

mm*122mm

Weight1250g1250g250g
1250g1.3kg

2.7kg

700g/4.4kg

Power

5W

5W

5W5W5W

5W

5W

/

36W



Application cases

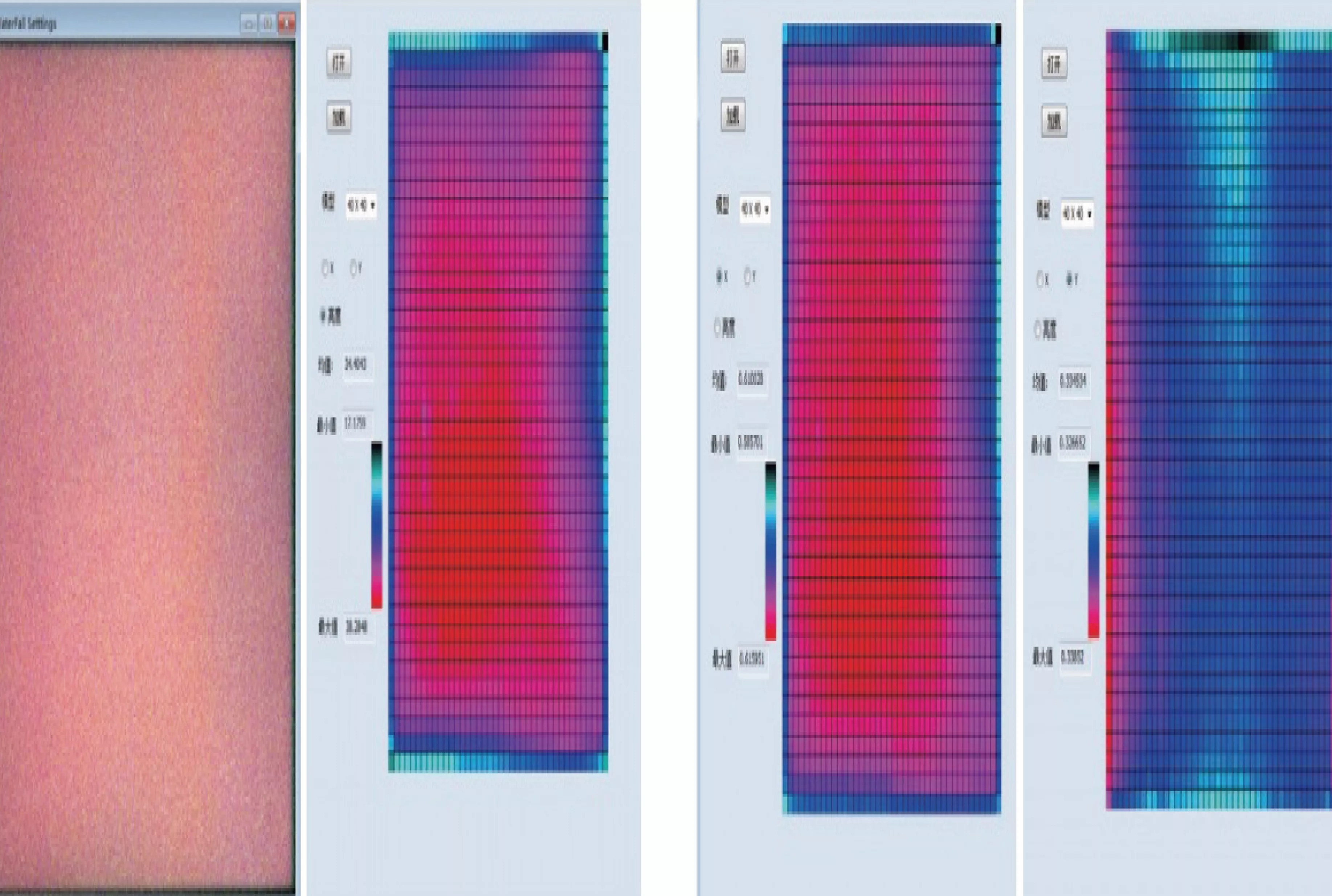

Print inspection
Textile testing

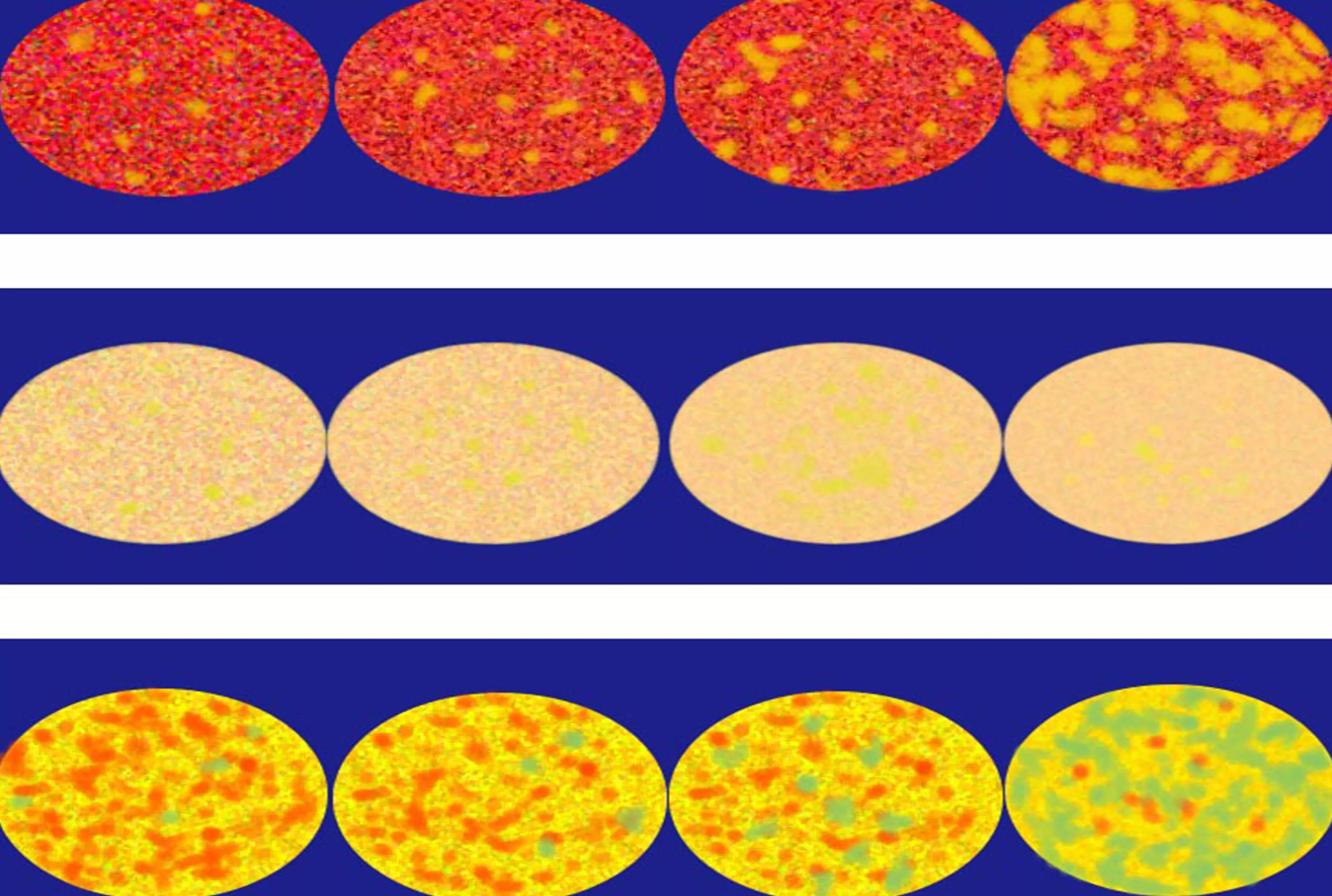

Drug composition analysis

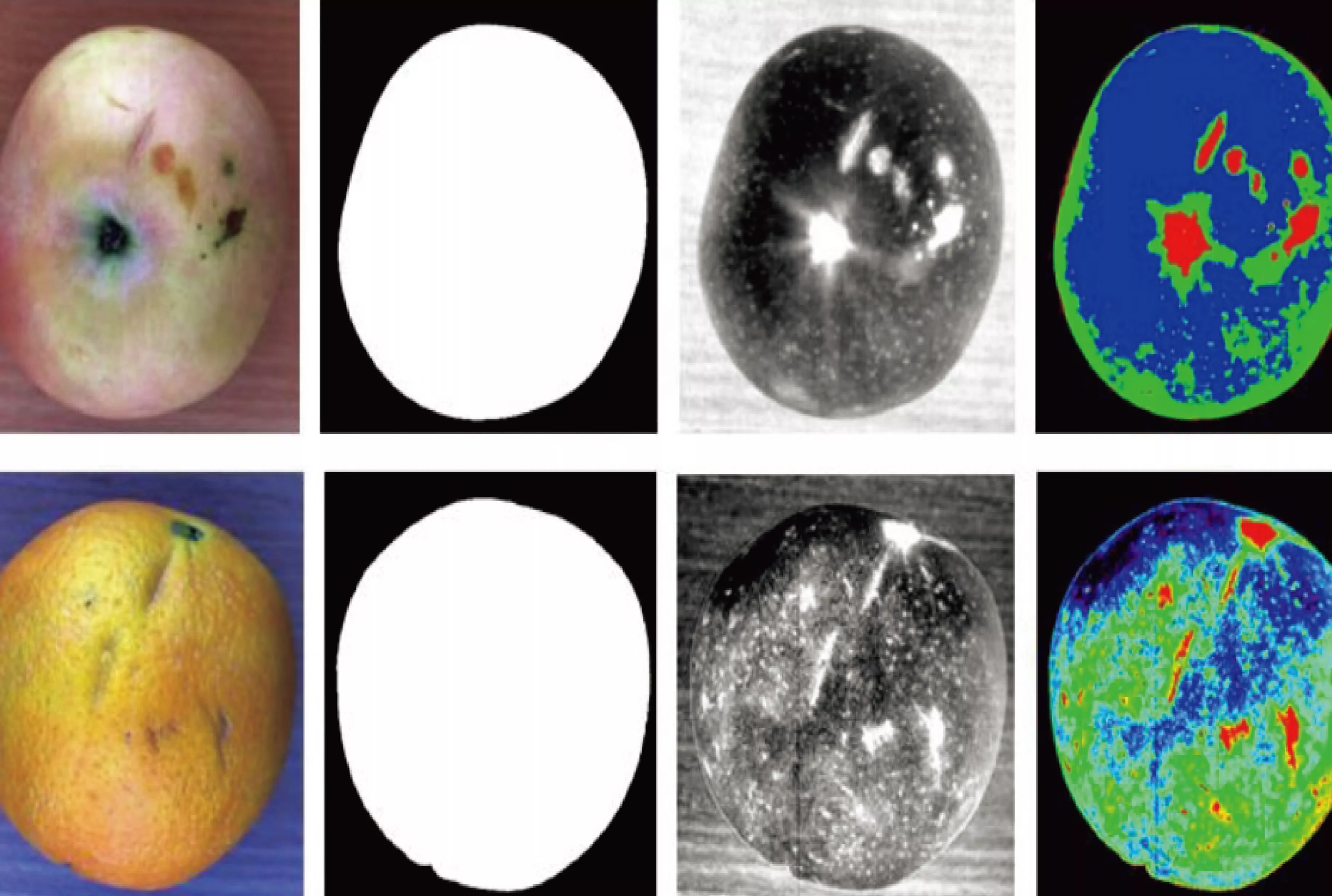

Fruit and vegetable sorting
refuse classification

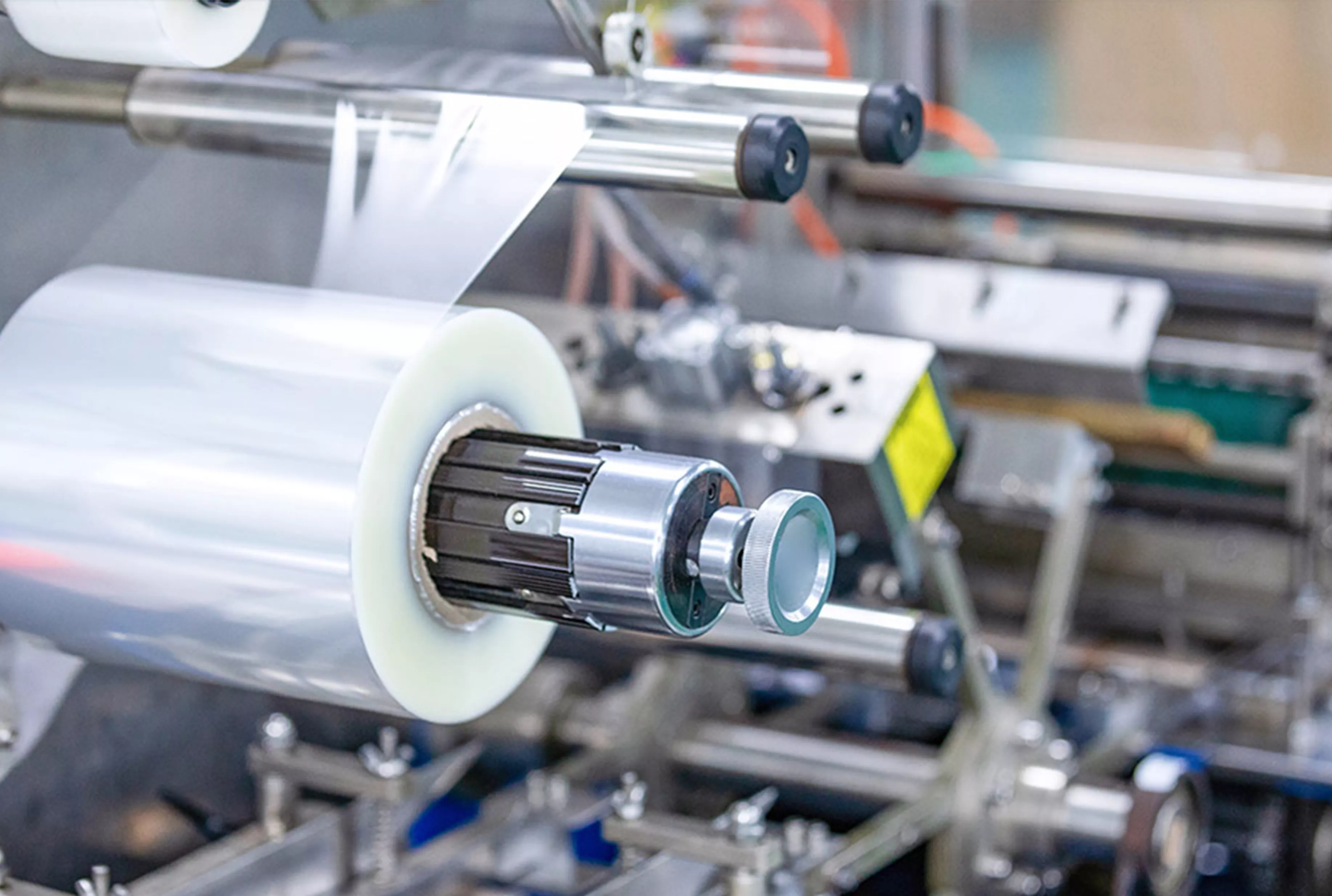

Film detection
Screen detection

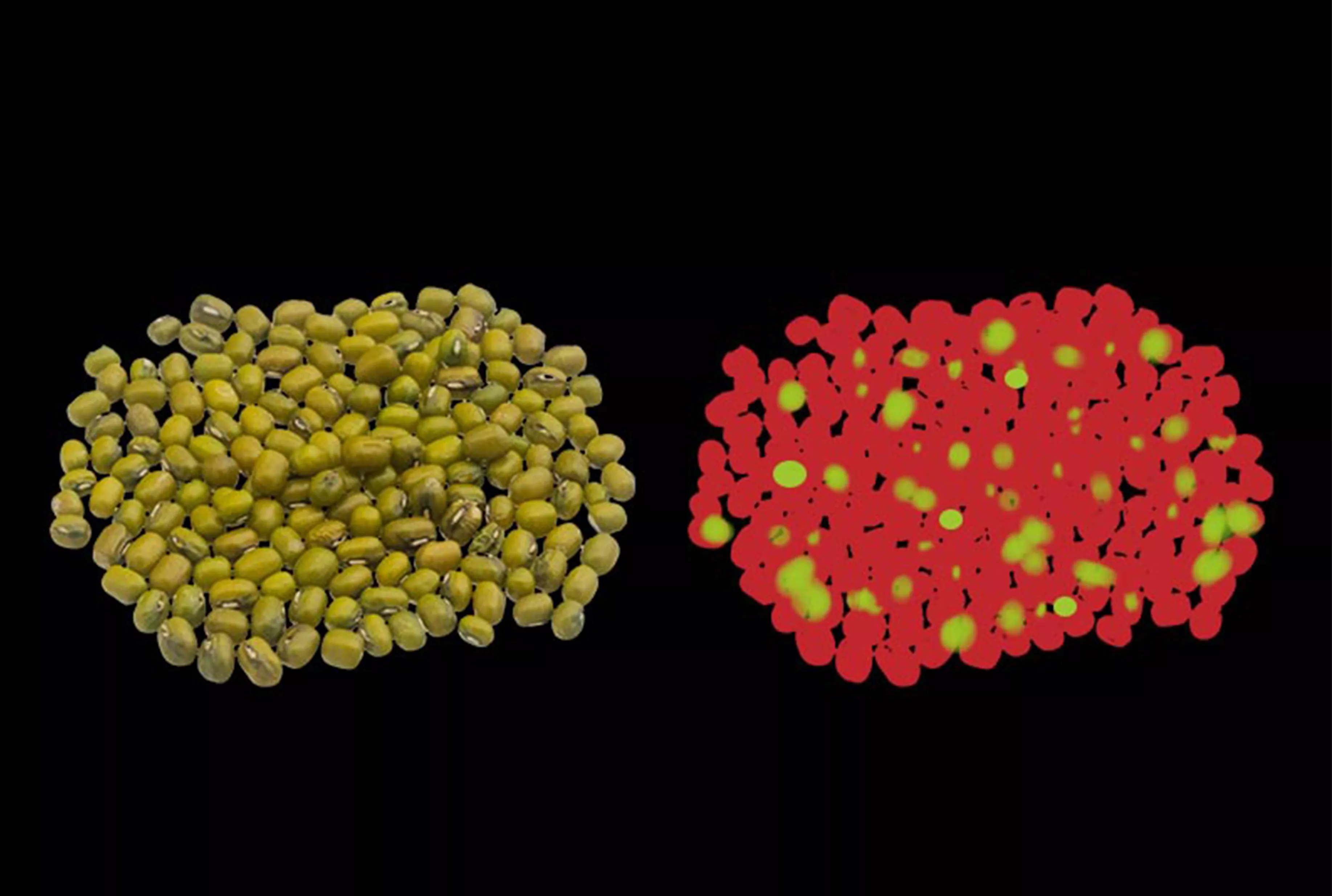

Agricultural products testing
Videos
Introduction to FS-13 using video
PCB detection video
Introduction to FS-13 pork detection video
Video introduction of FS-15 different plastic plates detection
Introduction to FS-15 Different Leaf Detection Video
FS-15 Video Introduction of Detection of Different Tobacco and Insect infested Tobacco
