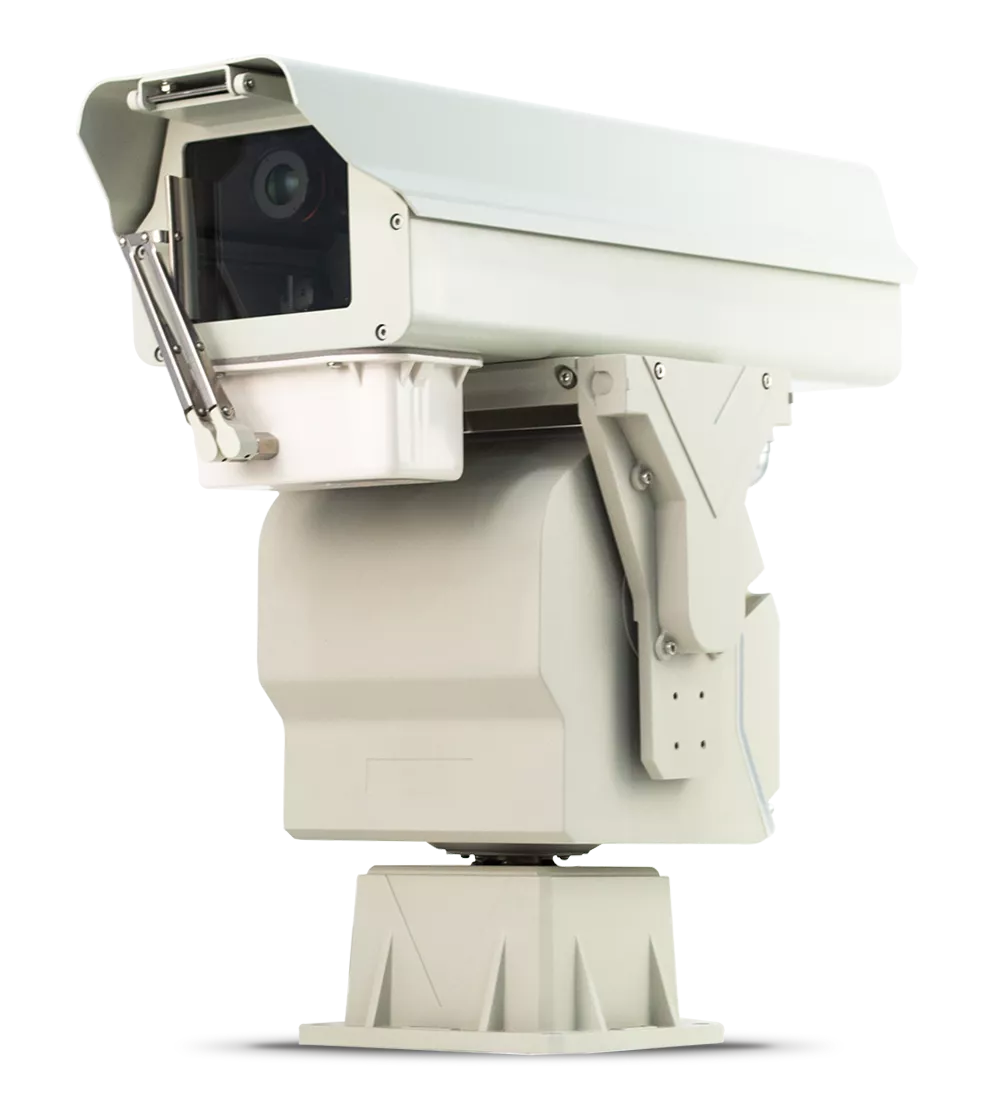

PTZ hyperspectral measurement system
FS series PTZ hyperspectral measurement system is a measurement system combining hyperspectral camera and PTZ equipment, which can realize real-time monitoring of the shooting area, support automatic scanning and network connection. It can be used in river, lake, forestry, agriculture, and other analysis and detection fields based on hyperspectral technology.
Product features
·Spectral range：390-1010nm
·Spectral channel number：1200
·Spectral resolution：2.5nm
·Head level range：360°
·Vertical range of PTZ：-90°~+90°
·Network connection: Supported
Technical parameters


Hyperspectral camera

Spectroscopic method

grating

Image resolution

1920*1920

Dynamic range

12 bits

Spectral channel number

1200

Spectral range

390-1010nm

Spectral resolution

2.5nm

Slit width

25um

Transmission efficiency

≥60%

Stray light level

≤0.5%

Pixel size

5.86um*5.86um

Detector type

CMOS

Standard lens focal length

12mm，16mm，25mm，35mm，50mm optional

Minimum working distance

100mm

Field Angle

25°

Minimum exposure time

21us

Maximum exposure time

10s

Signal-to-noise ratio

600/1

Camera lens interfaceC/EF
Imaging function

There are ROI capabilities that can achieve ROI for a single region

Auxiliary imaging function

The auxiliary view camera monitors the shooting area

Sensor imaging surface dimensions11.3*7.1mm

PTZ
Horizontal rangeHorizontal 360°
Vertical range-90°~+90°
Cruise scan modePreset point, auto scan, Frame scan, panoramic scan

Network
Client-sideSupport wins10 and above systems
Support protocolIPv4/IPv6，HTTP,HTTPS
Interface protocolFIGSPEC SDK

Port
PortUSB3.0/1000M Network interface

General norm
Operating temperature and humidity-20°C~+40°C；Humidity less than 80%
