VIS-NIR-SWIR(400-1700nm)hyperspectral analysis system
Product features

✔ Single sensor optical path (400-1700nm) hyperspectral detection;

✔ The spectral resolution is less than 18nm;

✔ Spatial resolution 640;


0

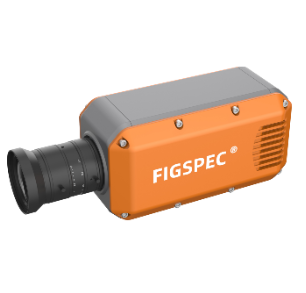

Line Scan Camera (FS-14)

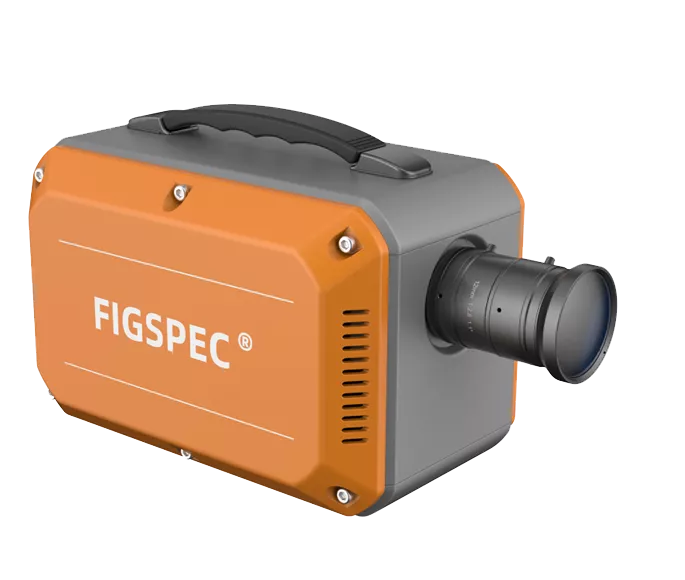

Imaging Camera (FS-24)
UAV hyperspectral camera FS-64C

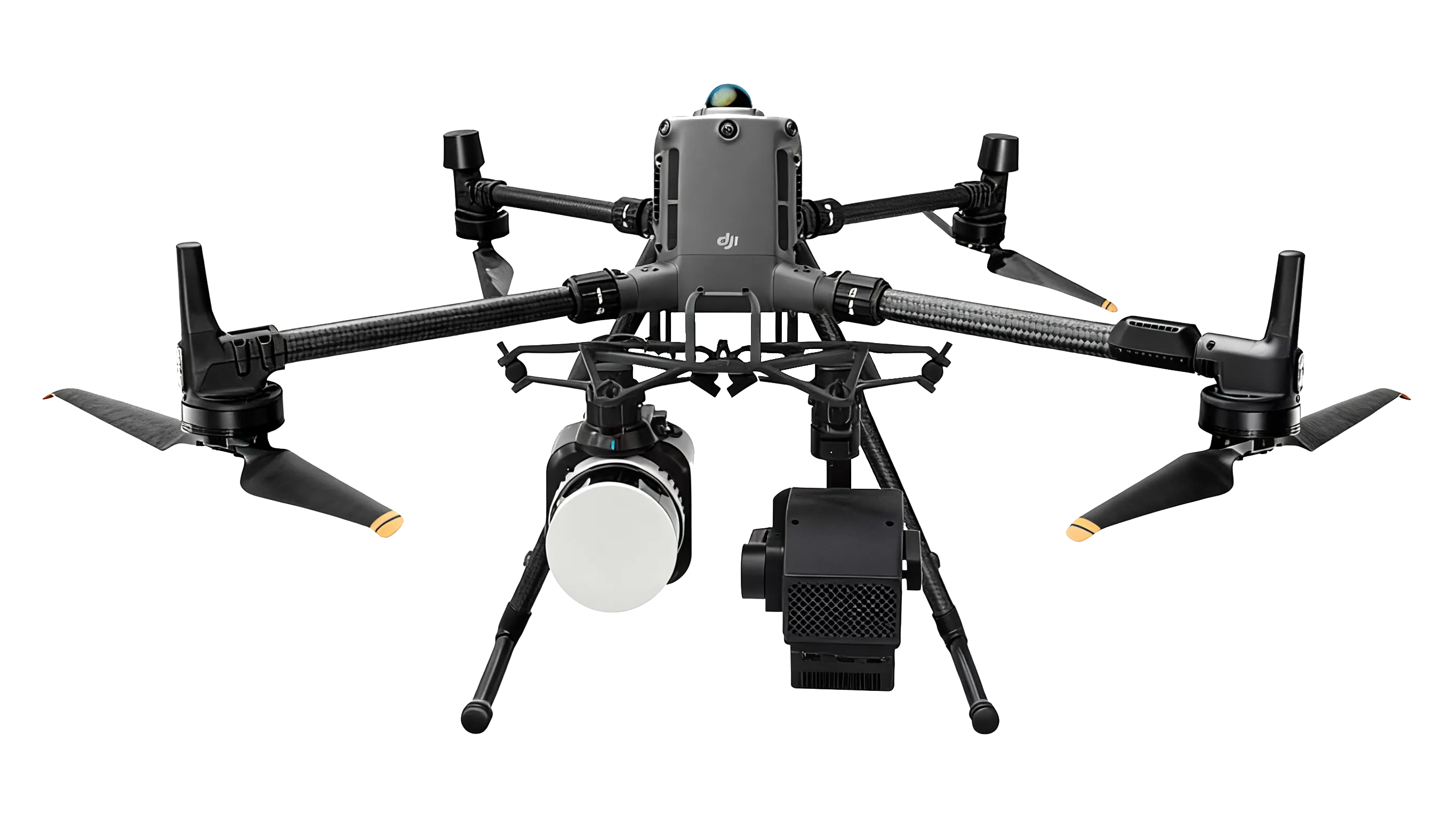

Lidar UAV hyperspectral system FS-64
Technical parameters

1、Line Scan Camera (FS-14)


Product name

FS-14 Line Scan Camera

Spectroscopic method

Transmission grating

Spectral range

400-1700nm

Spectral band number

>250

Spectral resolution (FWHM)

18nm

Slit width

25um

Transmission efficiency

>60%

Stray light

<0.5%

Number of spatial pixels

640

Pixel size

5um

Lens focal length

16mm

Imaging speed

200fps

Probe

InGaAs

SNR(Peak)

600/1

Camera output

USB3.0

Camera interface

C-Mount

attachment

Lens, data cable, power supply

Technical support

Can provide SDK, support secondary development

ROI

Multiple regions


2、Imaging Camera (FS-24)


Product name

FS-24 Imaging Camera

Spectroscopic method

Transmission grating spectroscopy

Image resolution

640*640

Dynamic range

12 bits

Imaging speed

5s

Spectral band number

250

Spectral range

390-1710nm

Spectral resolution

18nm

Slit width

25um

Transmission efficiency

≥60%

Stray light

≤0.5%

Pixel size

5um*5um

Probe

InGaAs

Matching lens focal length(mm)

25mm

Minimum working distance(mm)

100mm

Field Angle

25°

Minimum exposure time

21us

Maximum exposure time

10s

SNR(Peak)

600/1

Camera output

USB3.0

Camera interface

C

attachment

USB3.0 transmission line

ROI

There are ROI capabilities that can achieve ROI for a single region

Auxiliary imaging function

The auxiliary view camera monitors the shooting area

Power supply mode

Built-in battery power


3、Lidar UAV hyperspectral system FS-64


Product name

FS-64 Lidar UAV hyperspectral system

System measurement accuracy

5cm

odometry

300m

Scan the Angle of view

40.3°(vertical)*360°(horizontal)

Dot frequency

640,000 points/second (single echo)

1.28 million points/second (double echo)

1.92 million points/second (triple echo)

Built-in camera image cable

26 million (6252*4168)

Lens focal length

16mm

Main engine weight

1Kg

Operating temperature

-20°C~+50℃

Storage temperature

-20°C~+65℃

Class of protection

IP64

Storage capacity

512GB internal storage / 512GB extended storage

Data copy mode

Type-C

Mount interface

DJl Skyport interface

Flying platform

M300/M350 RTK

Control mode

Support key start acquisition, including power supply and data acquisition

Remote control

Support remote control APP control device work

Data copy speed

Max 300M/s

Storage mode

Built-in storage and TF card storage

Equipment control software

M300/M350 UAV remote control integrated control software

software

Acquisition software, splicing software and analysis software

Lighting mode

Passive lighting (without light source)

Spectroscopic method

Transmission grating

Spectral range

400-1700nm

Spectral band

250

Spectral resolution (FWHM)

18nm

Slit width

25um

Transmission efficiency

>60%

Stray light

<0.5%

Number of spatial pixels

640

Pixel size

5um

Imaging speed

Full band 200HZ

Probe

InGaAs

Signal-to-noise ratio

600/1

Camera output

USB3.0 or Gigabit network

Camera interface

C-Mount

attachment

USB3.0 transmission line or Gigabit network transmission line

ROI

Multiple regions

Embedded data acquisition processing storage unit

Embedded processor 512GSSD storage


4、UAV hyperspectral camera FS-64C


Product name

FS-64C UAV hyperspectral camera

Spectroscopic method

Transmission grating spectroscopy

Spectral range

400-1700nm

Spectral band number

250

Spectral resolution (FWHM)

18nm

Slit width

≤25um

Spectral efficiency

>60%

Stray light

<0.5%

Number of spatial pixels

6.4

Pixel size

5um*5um

Imaging speed

Full band 200Hz, Max 4000HZ

Probe

InGaAs

SNR(Peak)

600/1

Camera output interface

USB

Camera lens interface

C-Mount

ROI function

Multiple zones can be implemented

Built-in embedded data acquisition and processing unit

windows operating system, 8GB memory 1TB SSD with HDMI interface, USB3.0 interface, and camera integrated design

Heat dissipation mode

Internal air cooling heat dissipation

Mode of operation

Easy to operate, no need for professional drone operator, can achieve single operation

Observation mode

Real-time observation of aircraft sampling sites, hyperspectral images, spectral data through ground stations

Correction mode

Radiometric correction, reflectivity correction, and area correction support batch processing

Data format

Compatible with spe, hdr, and scp formats

Application software

FIGSPEC UAV,FIGSPEC Merage Puzzle Software FIGSPEC studio Application software Image analysis software

attachment

Reflectance calibration board

Lens focal length

25mm

Lens field of view

>25°
