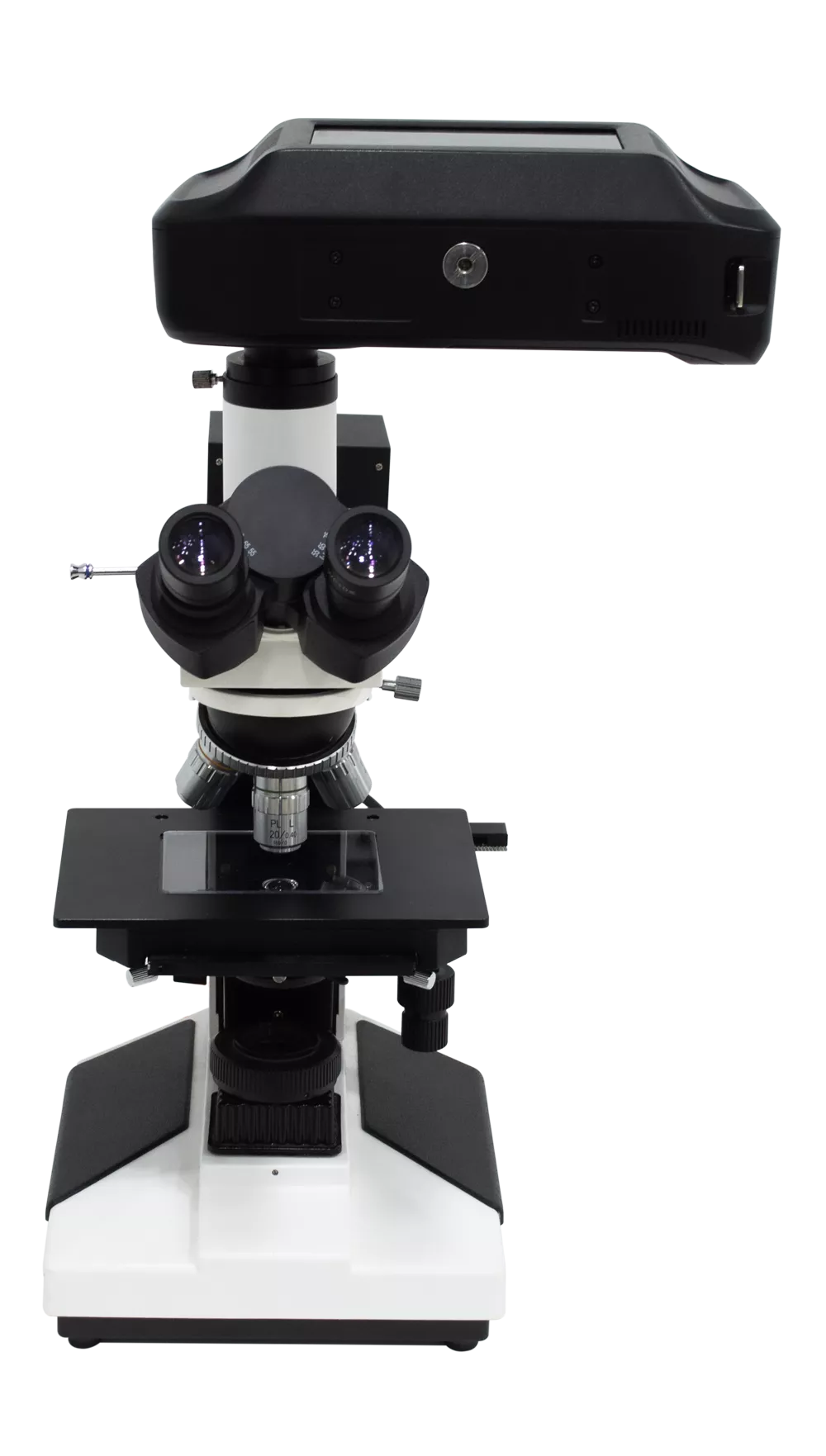

Microscope Hyperspectral Measurement System
Product features

✔ Combining the advantages of both the microscope and the portable hyperspectral camera,hyperspectral data collection can be carried out for microscopic images at any time.

✔ The existing biological microscope, fluorescence microscope, stereomicroscope and metallographic microscope can be transformed, and the ordinary microscope can be transformed into hyperspectral microscope conveniently.

✔ FigSpec® The series portable hyperspectral camera is internally integrated with a visual camera and a hyperspectral camera. The visual camera can be used to quickly preview the sampled image, and hyperspectral image data acquisition can be carried out after it is determined that the image meets the requirements.
System composition

▎Portable hyperspectral camera (FS-IQ-VISNIR) * 1

▎lens * 1

▎microscope (any manufacturer and model can be specified) * 1

▎PC application software * 1

Technical parameters

Model

Microscope hyperspectral measurement system

Spectroscopic splitting method

Transmission grating light splitting

Image resolution

1920*1920

Dynamic range

12 bits

Imaging speed

5 seconds

Number of spectral channels

1200

Spectral range

400-1000nm

Spectral FWHM

2.5nm

Slit width

25um

Transmission efficiency

≥60%

Stray light level

≤0.5%

Pixel size

5.86um*5.86um

Detector type

CMOS

Standard lens focal length

25mm

Minimum working distance

100mm

Field angle

25°

Minimum exposure time

21us

Maximum exposure time

10s

Signal-to-noise ratio

600/1

Data interface

USB3.0

Camera lens interface

C

Parts

USB3.0 Transmission line

Auxiliary imaging function

The auxiliary view camera monitors the shooting area

Eyepiece

Large Field of view WF10X(Φ18mm)

Objective lens

Long anomaly field achromatic objective (glass without cover) PL 5X/0.12

Long anomaly field achromatic objective (glass without cover) PL L10X/0.25

Long anomaly field achromatic objective (glass without cover) PL L40X/0.60

Long anomaly field achromatic objective (glass without cover) PL L60X/0.75 (spring)

Eyepiece tubeTriocular, tilted 30˚,(built-in polarizer, can be switched)
Episcopic illumination system

6V 20W halogen lamp with adjustable brightness

Fall illuminator with field light bar, aperture light bar, polarizer,(yellow, blue, green) color filter and frosted glass

Focusing mechanismCoarse-adjustable coaxial focusing, coarse-adjustable cell value :2μm,coarse-adjustable elastic, with locking and limiting device
ConverterFour holes (inward ball positioning)

Stage

Double-layer mechanical mobile (size :185mmX140mm, moving range :75mmX50mm)
