Application of Hyperspectral in the Field of Ore Silicates

In the research and application of ore silicates, we always face many challenges. How to accurately identify different types of ore silicate minerals? How to deeply understand the structural and compositional changes of ore silicates? How to efficiently explore and develop mineral resources? These problems have always troubled geologists and mineral resource developers. With the continuous development of hyperspectral technology, these problems seem to have ushered in new solutions. Hyperspectral technology can capture the unique spectral characteristics of ore silicates. By analyzing these characteristics, we can achieve accurate identification of ore silicates, structural analysis and rapid exploration of mineral resources. Therefore, in-depth exploration of the application of hyperspectral in the field of ore silicates has important practical significance for solving these long-standing problems.

1. Application scenarios

1. Identification and classification of ore silicates:

Identification of mineral types: Different ore silicate minerals have unique spectral characteristics. Hyperspectral technology can accurately identify the types of silicate minerals contained in the ore by analyzing these characteristics. For example, by detecting the position, intensity and shape of the absorption peak or reflection peak in a specific wavelength range, different types of layered silicate minerals such as kaolinite, montmorillonite and illite can be distinguished.

Ore grade assessment: For ores containing multiple mineral components, hyperspectral can evaluate the overall grade of the ore based on the spectral characteristics of different minerals and their relative contents. This helps to quickly determine the value and utilization direction of the ore during ore mining and processing.

2. Analysis of the structure and crystallinity of ore silicates:

Structural research: Hyperspectral can detect the structural information of ore silicate minerals. For example, by analyzing the spectral characteristics generated by the vibration of metal ions and hydroxyl (-OH) groups in minerals, we can understand the crystal structure of the mineral, the nature of chemical bonds, and the coordination of cations. This is of great significance for a deep understanding of the physicochemical properties and formation mechanism of ore silicates.

Crystallinity judgment: Crystallinity is an important factor affecting the properties of ore silicate minerals. Hyperspectral technology can judge the degree of crystallinity based on the changes in the spectral characteristics of minerals. For example, with the increase of crystallinity, the intensity, width and shape of the spectral absorption peak or reflection peak of some minerals in a specific wavelength range will change regularly. By monitoring and analyzing these changes, the crystallinity of ore silicates can be accurately evaluated2. 3. Geological mapping and mineral resource exploration in mining areas:

Geological mapping: Hyperspectral technology can detect and analyze the geological conditions of mining areas in detail and draw high-precision geological maps. By identifying the spectral characteristics of different rocks and minerals, it can accurately divide geological units, determine stratigraphic boundaries, identify geological structures, etc., and provide basic data for geological research and mineral resource exploration in mining areas.

Mineral resource exploration: In mineral resource exploration, hyperspectral technology can quickly scan large areas of mining areas and detect potential mineral resources. By analyzing the spectral characteristics of ore silicate minerals, hidden mineralization information can be discovered, the distribution range and enrichment of minerals can be determined, and strong support can be provided for the exploration and development of mineral resources.

2. Measured Application

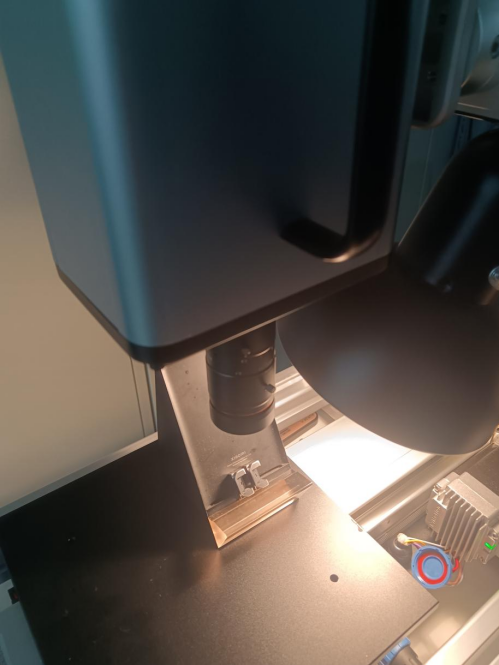

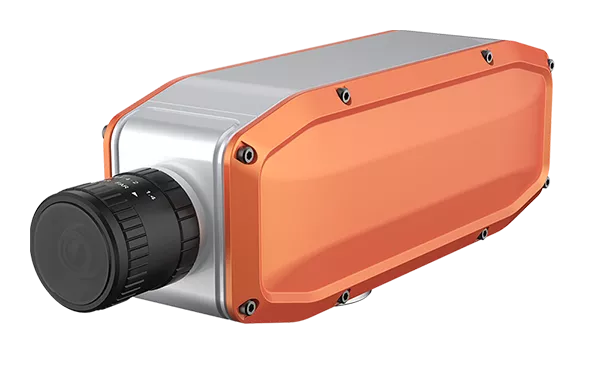

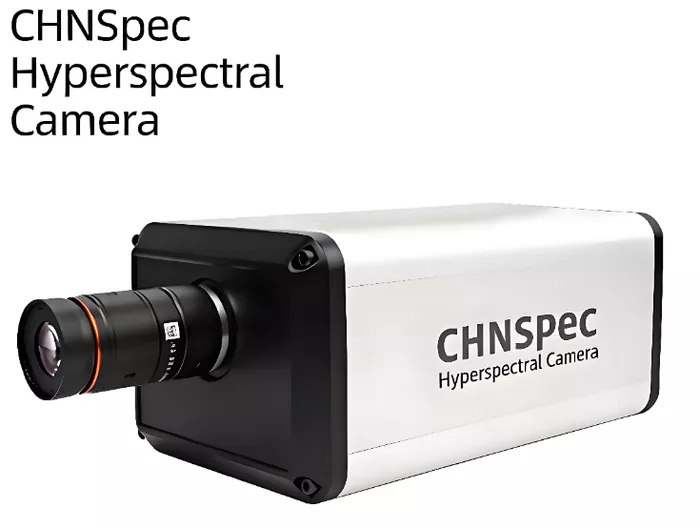

Instrument used: Color FS-23 hyperspectral camera

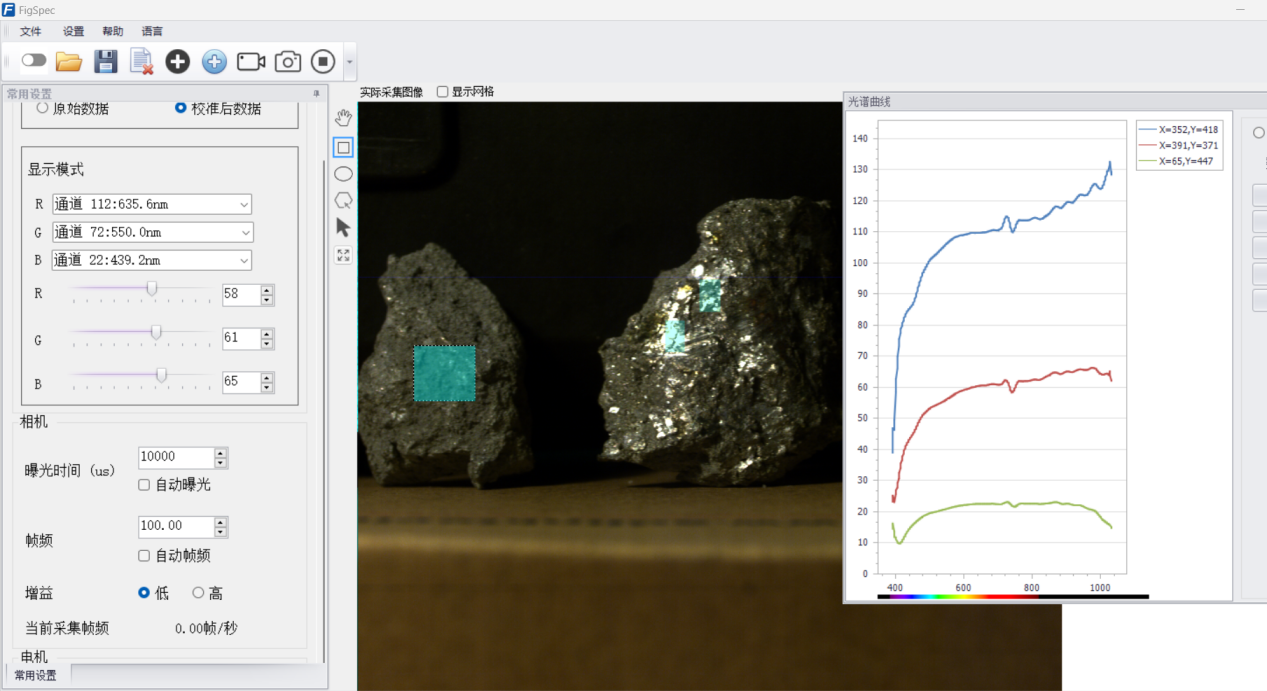

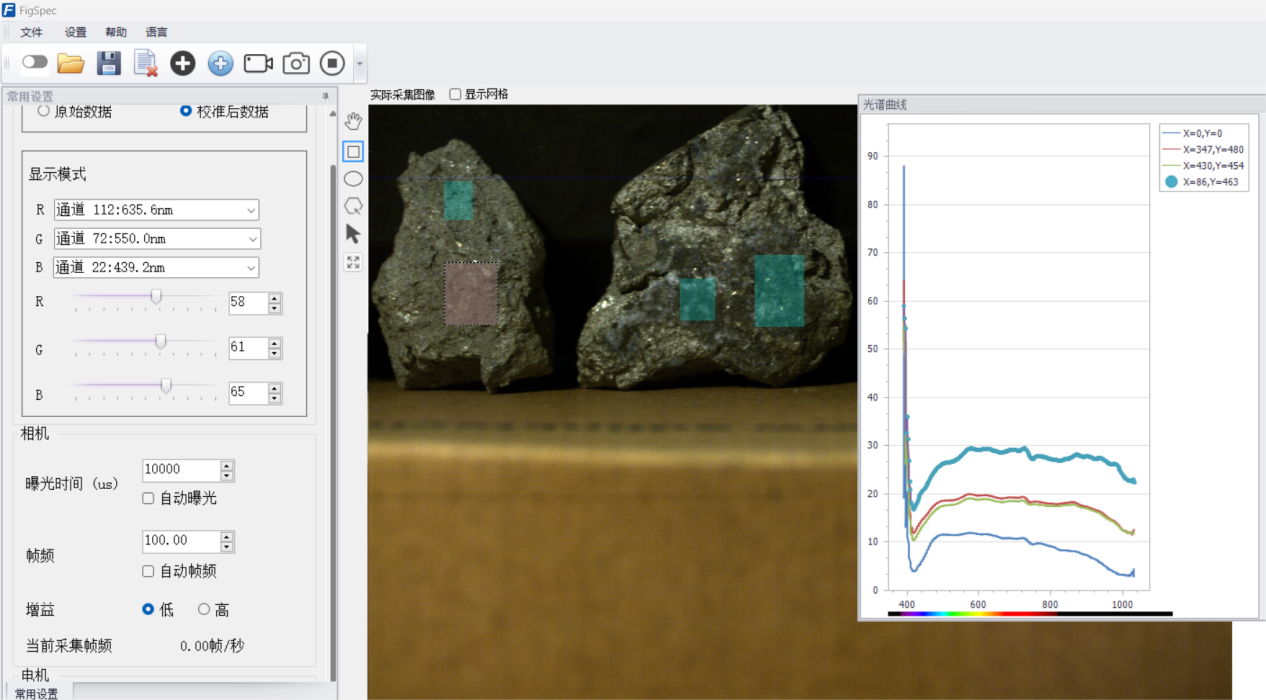

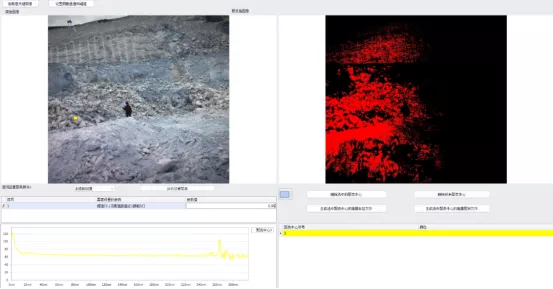

Test results

Conclusion

The reflectivity of the spectral curve is obvious. Under the illumination of halogen light, the silicate-containing part will be obviously bright, and the spectral curve will have obvious characteristic peaks (exposure time setting and white calibration are more critical)

III. Development prospects

In the future, the performance indicators of hyperspectral instruments such as spectral resolution, spatial resolution and signal-to-noise ratio will continue to improve. Higher spectral resolution can more accurately capture the subtle spectral characteristics of ore silicate minerals, which helps to more accurately identify mineral types and analyze their structures. For example, for some silicate minerals with similar crystal structures and small differences in spectral characteristics, high-resolution spectral instruments can better distinguish them. At the same time, the improvement of spatial resolution will enable hyperspectral technology to analyze smaller ore particles or mineral structures and provide more detailed mineral distribution information, which is of great significance for studying the microstructure of ore and the relationship between minerals. With the development of technology, hyperspectral instruments will gradually develop in the direction of miniaturization and portability. This will make the application of hyperspectral technology in field geological exploration, mine site monitoring and other fields more convenient. Geologists can conduct rapid testing and analysis of ores directly in the field, and obtain information such as the mineral composition and structure of the ores in a timely manner, providing more timely and accurate data support for the exploration and development of mineral resources.
